Innovv ThirdEYE | Mirror Edition | Radar system for Motorcycle

INNOVV Radar system for Motorcycle

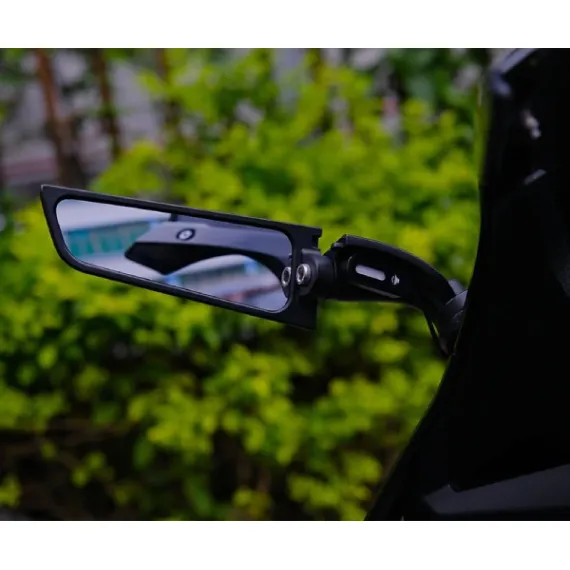

The ThirdEYE, the mirror version

Employing a millimeter wave radar with a frequency range 77-79 GHz, and combining the detected information with a software algorithm, the ThirdEYE can detect dynamic target vehicles from both sides of the motorcycle and the rear side, providing warnings with a visual alert and an audible warning in the dashboard.

Product Advantages

1. Wide field of view: 150° horizontal detecting angle maximizing the detecting range, which helps the riders to get more time to react and respond to emergencies.
2. High precision: The radar is with 77Ghz sensor which enables the system to achieve super good performance in the range resolution, velocity measurement, and accuracy.
3. Durable and flexible: High-end aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +80℃.
4. Up to 64 targets: Detecting 64 targets simultaneously in a 50m maximum detecting range helps the driver get more time to react and respond to avoid the accident.
5. Easy to Install: Small and Compact sizes make the product quite easy to install.
6. Protection Degree: IP 67 rate, superior performance against water, dust and excellent performance in high& low-temperature environments.

3 Schemes Of Radar Operation

• BSD (Blind Spot Detection System) mode: the detecting range of the BSD mode is from 0.2 m to 6 m.
• LCA (Lane Change Assistance) mode: is defaulted on and will detect targets in a range from 0.2 m to 50 m when TTC (Time to collision) is less than or equal to 3 seconds.
• RCW (Rear Collision Warning) mode: is defaulted on and will detect targets in a range from 0.2 m to 50 m when TTC (Time to collision) is less than or equal to 3 seconds

Velocity Difference VS Warning Distance Chart

*TTC: Time to Collision

TTC= 3 seconds

Warning Distance = TTC* Velocity difference

For example: Velocity difference=10 km/h, Warning distance =10000/3600*3
=2.78*3
=8.34m

Velocity difference=60 km/h, Warning distance =60000/3600*3
=16.67*3
=50m

150° Angle + 50 m maximum detecting range

Wide field of view: 150° horizontal detecting angle maximizing the detecting range, which helps the riders to get more time to react and respond to emergencies.

Detecting Up to 64 Targets

Detecting 64 targets simultaneously in a 50m maximum detecting range helps the driver get more time to react and respond to avoid an accident.

Working Frequency 77-79GHz

The radar is with 77-79GHz sensor which enables the system to achieve superior performance in the range resolution, velocity measurement, and accuracy.

Waterproof IP 67

IP 67 rate, superior performance against water, and dust, and excellent performance in high& low-temperature environments.

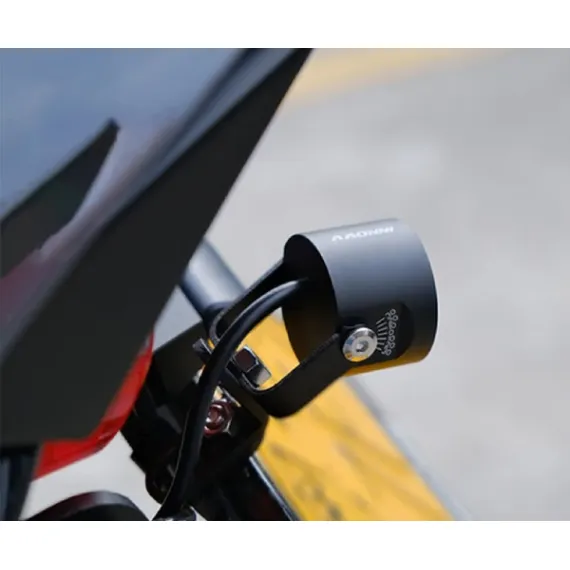

Easy to Install

The radar system is a small, compact size and quite easy to install and use.

Durable and flexible

High-end aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +80℃.

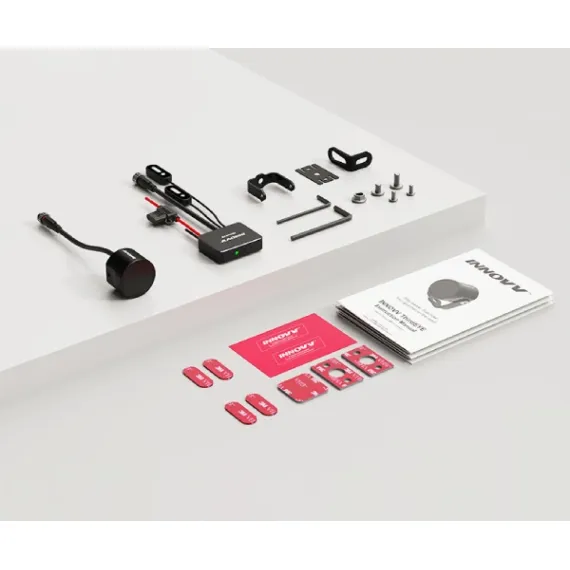

In the box

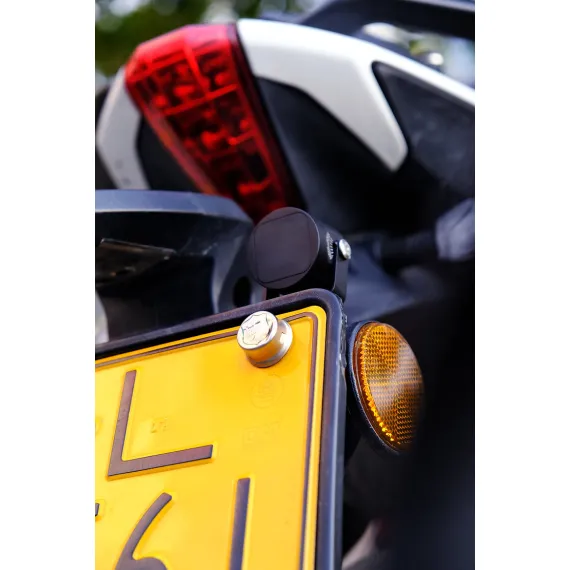

• 1 x Radar Detector

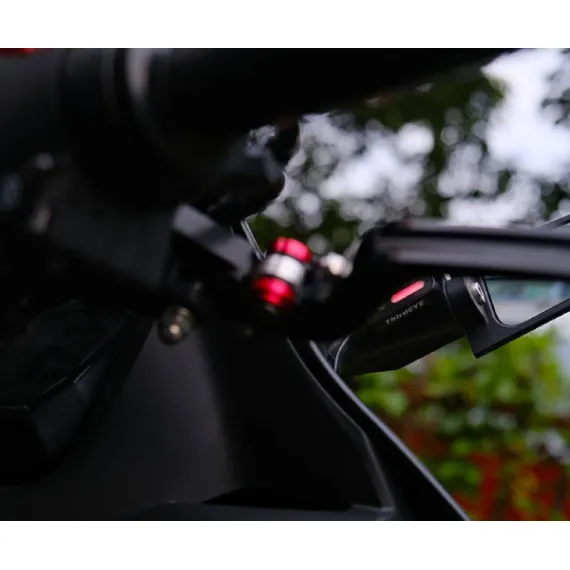

• 1 x Watch Alert Display
• 1 x Manual
• 1 x Brackets Package

• Also availabule in The Watch Virsion
